Clouds > Stratiform Clouds
Learning Goal 1a. Identify & classify clouds, and relate them
to local and larger-scale weather systems.
Layer clouds or stratiform
clouds
(St) look like sheets or blankets. They range from only 100 m to 6 km
thick in the vertical, but can have a horizontal extent of 100 km to
1000 km. They are associated with layers in the atmosphere with
different relative temperatures, as explained next.
The sketch below shows a wedge of cool or cold air at ground level.
When a horizontal wind moves warmer air toward this cold wedge, the
warm air slides up along the top surface of the cold air, because the
warm air is more buoyant (lighter) than the cold air. This behavior is
typical of warm fronts.
As the warm air rises, it gradually cools to the point where water
vapour can condense and make clouds. Indeed, we often find stratiform
clouds along warm fronts.

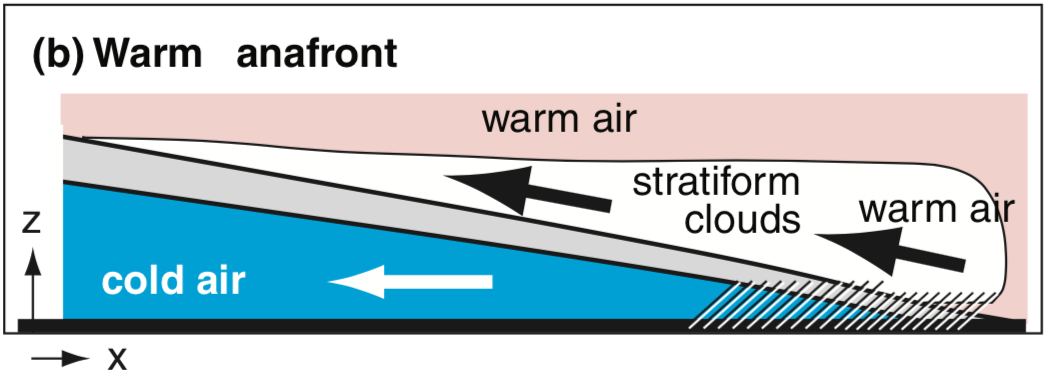

Vertical slice through a warm front, where warm
air
is advancing and cold air is retreating. z= height above ground
(spanning 10 km in this example), x = horizontal distance (spanning
1000 km in this example). Slanted lines represent light rain.
Stratiform clouds are classified by their altitude, and are grouped
into 3 categories:
- High: cirrus (Ci), cirrostratus (Cs), and
cirrocumulus (Cc)
- Middle: altostratus (As) and altocumulus
(Ac)
- Low: stratus (St), and nimbostratus (Ns)
NOTE: Even though some of
these stratiform cloud names have the word "cumulus" in them, these are
still stratiform clouds. But for these cases, the layer of cloud will
be lumpy (sort of like a blanket with holes in it).
The sketch below shows how stratiform clouds are classified by their
altitudes (where z = height above ground):

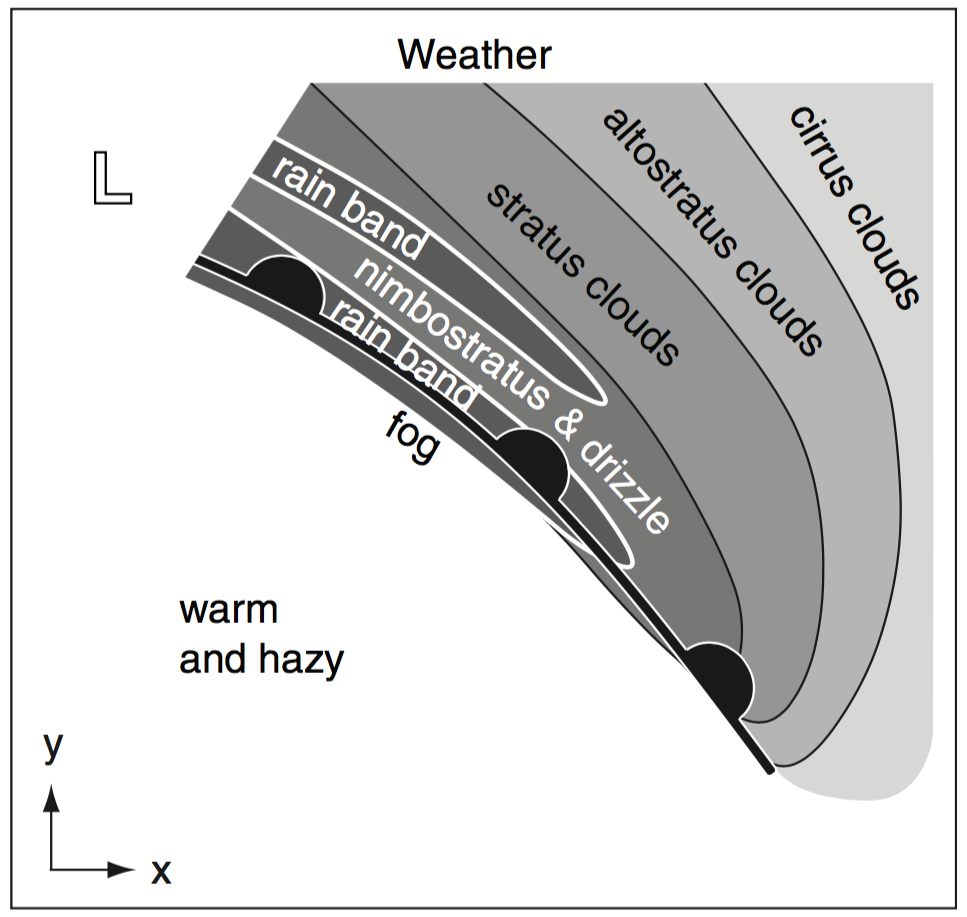

As a warm front approaches you, you normally see the high clouds
first. These clouds extend many hundreds of kilometers ahead of the
front, so you see them about half a day before the warm front arrives.
Next comes the mid-level clouds, and finally the low clouds along with
drizzle or light rain/snow. This sequence is sketched below, where the
warm front (at the thick black line with semicircles) is moving toward
the northeast (towards the upper-right corner), with the stratiform
clouds ahead of the front.
Here are some photos showing examples of stratiform clouds.
Stratiform Clouds
|
|
|
1. High.
Cirrus
(rooftop video1 and video2)
|
|
|
1. High.
Cirrostratus
For photo at right, ignore the
lumpy clouds. The halo is caused by a very thin cirrostratus cloud
covering the whole sky. Ice crystals in this cloud act like prisms
to bend the light, making the halo. The sun is hidden behind the light
post.
(rooftop video)
|
|
|
1. High.
Cirrocumulus
(rooftop video of ci -> cc)
|
|
|
2. Middle.
Altostratus
Left photo:The sun appears as a fuzzy spot of
light through these clouds.
Right photo: Water droplets in this cloud
diffract the sun light to make the bright circle with colored fringes -
called corona.
(rooftop video)
|
|
|
2. Middle.
Altocumulus
(rooftop video)
|
|
|
3. Low.
Stratus
(rooftop video of st -> ns)
|
|
|
3. Low.
Nimbostratus
(rooftop video of st -> ns)
|
|
|
Stratus vs. Nimbostratus
Stratus and nimbostratus clouds both have low cloud bases, and by
eye appear equally dark. But nimbostratus clouds are
precipitating (snow, mist, drizzle, or light rain), while stratus is
not. Thus, nimbostratus clouds often have diffuse (washed out)
cloud bases, while stratus clouds often have well defined cloud
bases. The next picture shows stratus and nimbostratus clouds
photographed from the same vantage point on the same day.
Hazards
Stratiform clouds are
not usually turbulent, so flying through them is often a smooth ride.
However, inside any cloud, including stratiform
clouds, pilots need to be flying on instruments because they cannot see
the ground or landmarks (instrument flight is covered in Learning Goal 1g).
If the stratiform clouds are cold enough (at
temperatures just below freezing), ice can form on the leading edges of
the aircraft due to the quick freezing of supercooled (below freezing)
liquid water drops (aircraft icing is covered in Learning
Goal 3g).
Also, soarplane pilots usually don't like stratiform clouds because
they shade the ground and prevent thermal updrafts from forming.
Key words: altocumulus, altostratus, cirrocumulus,
cirrostratus, cirrus, corona, layer cloud, nimbostratus, stratiform
cloud, stratus, warm front
