A Model of Ocean Waves

---



Introduction

Theory and Animations

            No Rotation Waves

            Poincaré Waves

            Rossby Waves

Model notes

Discussion of Results

Glossary

References




Introduction


Waves are defined as a transfer of energy through a medium. If the sea surface is disturbed from a steady state by some input of energy, waves are the mechanism by which this energy is transported across the ocean. When a rock is dropped into a flat pond a small disturbance in the surface of the water is formed. Gravity acts to restore the water to its original state, and the energy from the rock flows away in waves, seen as ripples that get smaller the farther they travel away. A bigger rock will generate bigger waves, so by looking at the waves something can be known about the size of the rock.





On a larger scale, waves generated by an upwelling or down-welling event in an ocean will tell us something about the nature of that event. Underwater landslides and earthquakes can cause disturbances at sea level that are transferred by waves; weather patterns are transferred by waves as well. A model that can follow the evolution of an initial disturbance will be a useful tool for the visualization and understanding of different types of waves generated under different conditions, and the way waveforms change as they travel.




Back to top

Theory and Animations

The evolution of the velocity and shape of the initial disturbance depends on several factors. The simplest case, non-dispersive waves, are independent of wavelength, frequency and direction; all frequency components move at the same speed and the shape of the initial disturbance does not change as the wave moves (Allen, 2003).

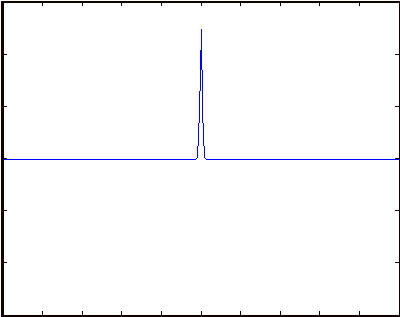

* This is a non-dispersive wave. This link will show you the code used to generate the animation below which can be viewed in a separate window by clicking on the image.








Dispersive waves occur when the waveform changes with time and direction. A wave’s dispersion relation defines the way it will move.



The rotation of the earth has an effect on the way a wave propagates if the waves are long enough; i.e.: the disturbance is big enough. One type of these waves are Poincaré waves: long gravity waves combined with internal oscillation, also called inertia-gravity waves. The degree of rotation exhibited by Poincaré waves depends on the comparison of the wavelength with the Rossby radius of deformation, such that short waves will not be affected by the rotation and fall into the non-dispersive category, and long waves on the order of the Rossby radius are classified as Poincaré waves (Gill, 1982).



A Poincaré wave has the dispersion relation



                        s2 = f2 + gDk2



where f=1*10-4s-1, g=9.8ms-2, D=depth of water, k=wavenumber

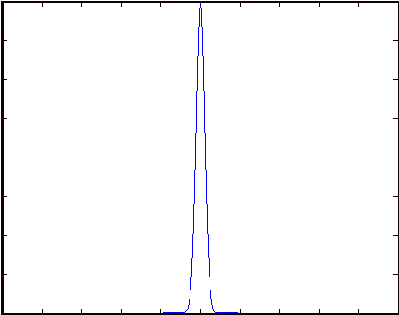

* This is a Poincaré wave. This link will show you the code used to generate the animation below which can be viewed in a separate window by clicking on the image.










Due to changes in potential vorticity on the surface of the earth, the strength of the Coriolis force changes with latitude. So when a wave is long enough to move across several degrees of latitude, the effect of the changing Coriolis is included in the dispersion relation by way of a constant, b. These low frequency waves, called Rossby waves, travel slowly westward on the b-plane and can be many kilometers long. Rossby waves depend on the Rossby Radius, R:



            R = (gD)1/2/f



When R is large compared to the width of the disturbance the wave generated may not be big enough to be classified as Rossby. A Rossby wave has the dispersion relation



            s = - bk/(k2 + 1/R2)

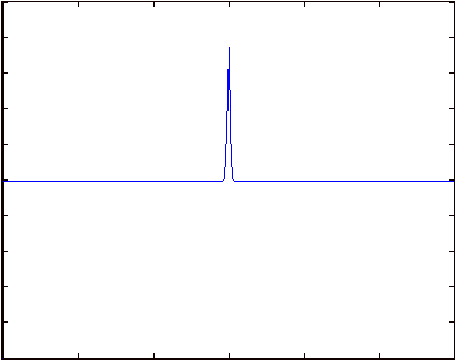

* This is a Rossby wave. This link will show you the code used to generate the animation below which can be viewed in a separate window by clicking on the image.












Back to top

Model notes

The model plots the evolution of an initial disturbance of a given height and radius, and at a given depth. There is a separate model for each of non-dispersive, f-plane, and b-plane waves. The latter two are similar, and involve Fourier theory; the first is much less complex and simply plots the movement of the waveform along a flat surface. In addition, parameters can be adjusted to follow the evolution of internal, or baroclinic, waves, by adjusting the water depth and the gravitational constant, g.



In all three models, the initial disturbance takes the shape of a Gaussian function,



                                                h (x) = H exp (-x2 / r2)



with H=height, r=radius, and x the domain over which the disturbance will propagate. In “No Rotation”, the model for a non-dispersive wave, h (x) is split such that for every x value in the domain, half the disturbance will travel one way, and the other half in the opposite direction:



            h (x,t) = 0.5*H exp (-(x+c*t)2 / r2)+ 0.5* H exp (-(x-c*t)2 / r2)



A vector is generated for each time step, and these are plotted in succession such that the disturbance appears to split apart and propagate away.



When rotation is included in “F-plane” and “b-plane”, the theory of the model becomes slightly more complex. A Fourier transform is applied to h (x) to solve for the amplitude of the disturbance at a given wavenumber, A(k):



                                    A (k) = ė h(x) * exp (ikx) * dx



This expression is then summed over the whole domain, x, for values of k and c_p, the phase speed. The values of k, the resolvable wavenumbers, are determined using discrete Fourier theory. A vector for the displacement of the surface, h, is calculated for each time step:



                                    h(x,t) = 1/N * S {A(k) * exp(i*k*(x – c_p*t))}



where N is the length of the domain. Again, plotting these vectors in succession allows one to trace the evolution of the initial disturbance. The phase speed depends on the dispersion relation. Rossby waves do not depend on the wave’s group speed, sqrt(g*H), their propagation depends only on the b constant and wavenumber; Poincaré waves are affected by f, c, and k.



Back to top

Discussion of Results

The models produce good representation of wave propagation in a specific environment. It is easy to tell how the wave moves in different situations, and how the size of the initial disturbance can change the wave dynamics. For example, in the f-plane model, a wave with small enough radius will behave in the same manner as a wave in the no-rotation case, because a wave this small will not be affected by the Coriolis effect.



It is possible to consider baroclinic instead of barotropic waves by changing the value of g to g’, a reduced gravity constant based on the difference in density between layers. The effect of this is that the waves travel more slowly, so other parameters in the model must be altered, such as radius, domain size, and time step, to produce meaningful plots.



A more complete picture of reality would include more than one type of wave spawned from a disturbance. For instance, Rossby waves only happen in the b-plane, but Poincaré waves and non-dispersive waves also appear in a b-plane. However, this model shows only one type of wave per plane for a simplistic picture of how that type of wave moves and evolves.



Back to top

Glossary

Baroclinic- these waves occur in a stratified system, between the two layers of different density; u and v vary with z

Barotropic- these waves occur on the surface, and density is a function only of pressure, ie: there is no variation of u and v with z

Wavenumber- the number of wave cycles per unit distance; k=2p/l=s/c

Vorticity- the curl of the velocity field



For more information on these concepts see Glossary of Oceanography and the Related Geosciences with References

 References

Allen, Susan. Advanced Geophysical Fluid Dynamics.Advanced Geophysical Fluid Dynamics. Earth & Ocean Sciences, UBC. 2003.

Baum, Steven K. “Glossary of Oceanography and the Related Geosciences with References”. January 20, 1997.  http://stommel.tamu.edu/~baum/paleo/paleogloss/paleogloss.html Texas A&M University.

Cushman-Roisin, Benoit. Introduction to Geophysical Fluid Dynamics. New Jersey: Prentice Hall, 1994.

Georgia Systematic Teacher Education Program. “The GSTEP Ripple Report”. 2003.

Gill, Adrian E. Atmosphere-Ocean Dynamics. New York: Academic Press, Inc., 1982.

Hoffman, Forrest. “An Introduction to Fourier Theory”. January 13, 2004. http://utcsl.phys.utk.edu/~forrest/papers/fourier/index.html.

LeBlond, Paul, and Mysak, L.A. Waves in the Ocean. New York: Elsevier Scientific Publishing, 1978.

University Corporation for Atmospheric Research. “The Balancing of Geostrophic Adjustment”.  http://meted.ucar.edu/nwp/pcu1/d_adjust.html 2002.



Back to top



Kate Collins, February 11, 2004.
